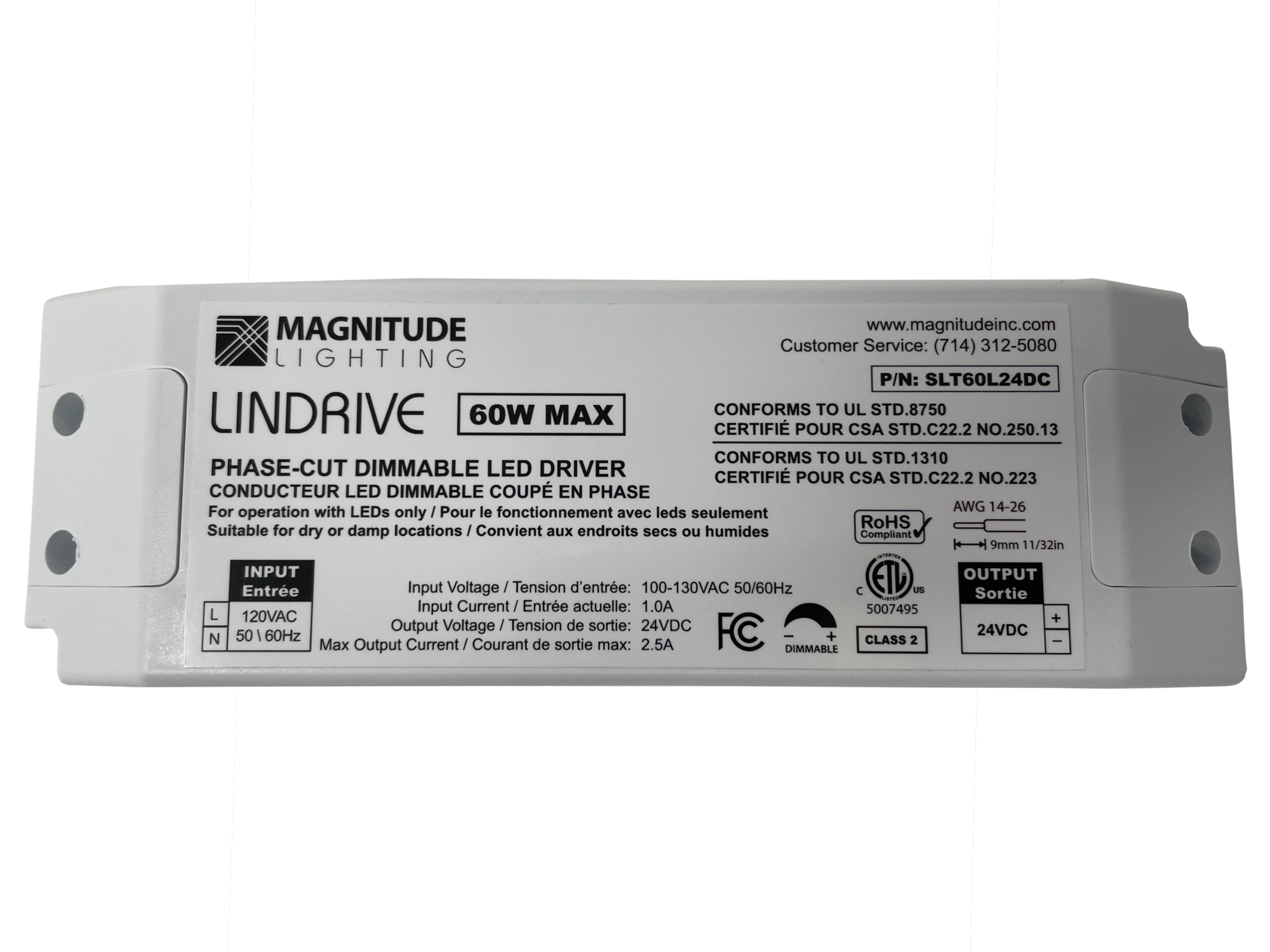

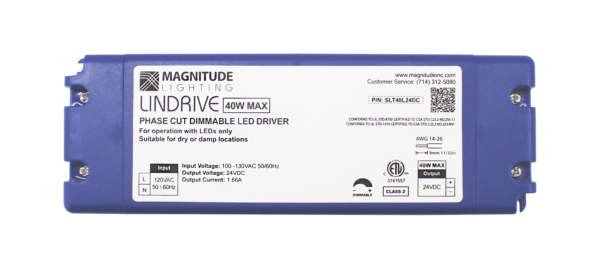

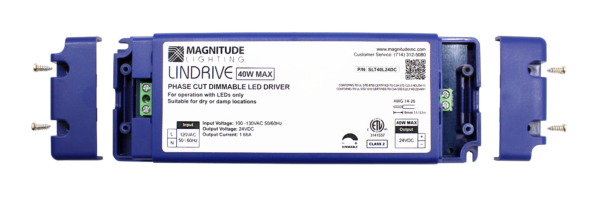

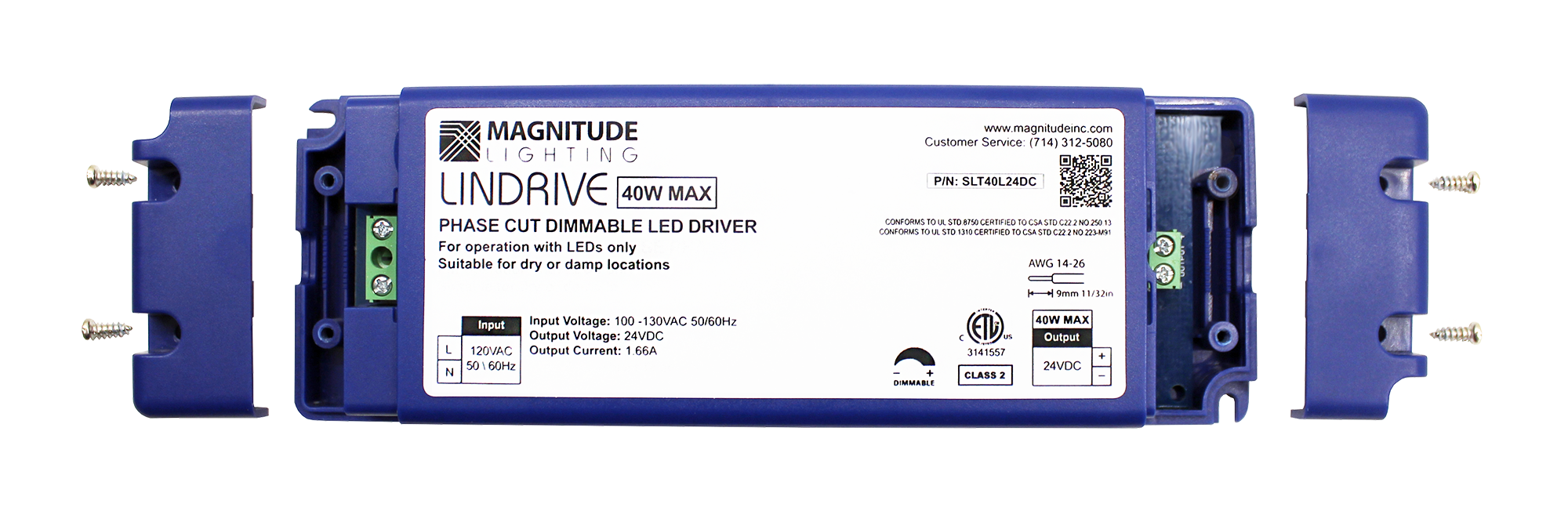

The Magnitude Lindrive dimmable LED driver allows you to hardwire and dim your LED’s from a compatible wall switch/dimmer. The Lindrive series offers smooth flicker free dimming with a wide variety of compatible dimmers. The slim size of the Lindrive enables easy and safe installation, making it the perfect choice for under cabinet and above cabinet lights.
This dimmable led driver also requires a cable to run from the driver to the first light(s). We suggest using Inspired LED’s interconnect cables or in-wall cables to terminate into the screw terminal on the output side of the transformer. (Cables & Accessories not included)
- Dimmable with most standard MLV/Incandescent TRIAC (leading edge) dimmer switches – Lutron DVCL Dimmer
- Super compact ABS plastic case – 20W and 40W are less than 1″ high, 60W is 1.5″)
- Class 2, ETL Listed under UL 8750 and 1310
- Auto-reset protection for short circuits and over-voltage
